|Acoustics of the saxophone|
Bb soprano saxophone
Notes are the written pitch.

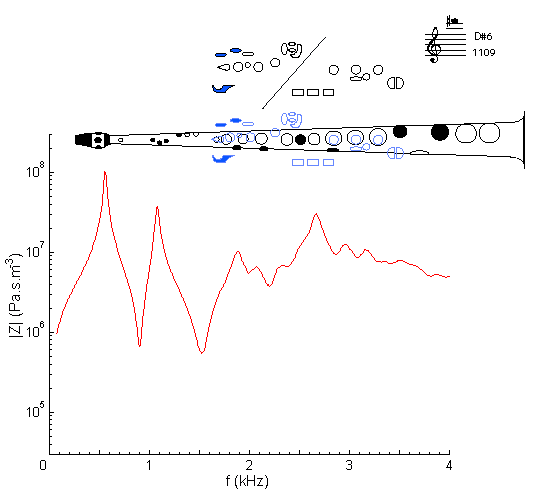

This note is still in the second register – it plays at the second peak on the impedance spectrum. On most other woodwinds, the corresponding note would lie in the third register, using a resonance related to the third peak of the note G#4. However, that peak falls above the cut-off frequency, which is about 1 kHz, and is too weak (and too sharp).
This fingering uses a register hole. This causes a leak in the bore that weakens the first impedance peak. Above the second peak, the curve is irregular: see the discussion in cut-off frequency.
Compare with the impedance spectrum for a tenor sax on written D#6: same fingering but sounding one octave lower.

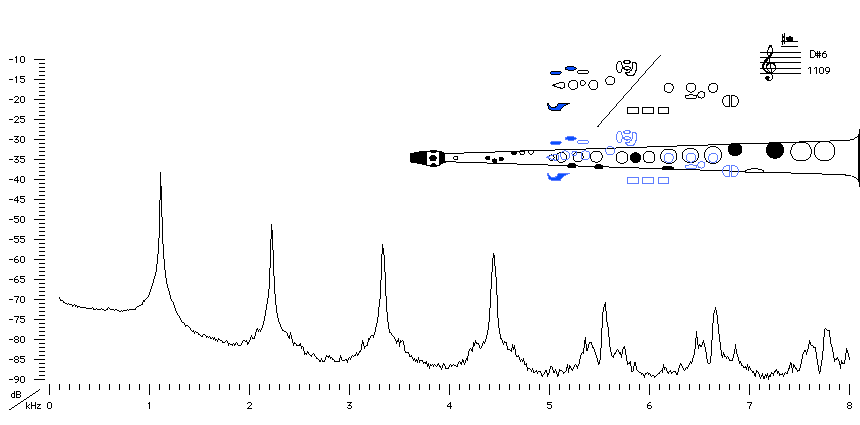

Sound spectrum of a Bb soprano saxophone played using fingering for D#6.
For more explanation, see Introduction to saxophone acoustics.
You can hear D#6 played.
