Acoustics of the saxophone

Bb soprano saxophone

A4

Music Acoustics UNSW

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

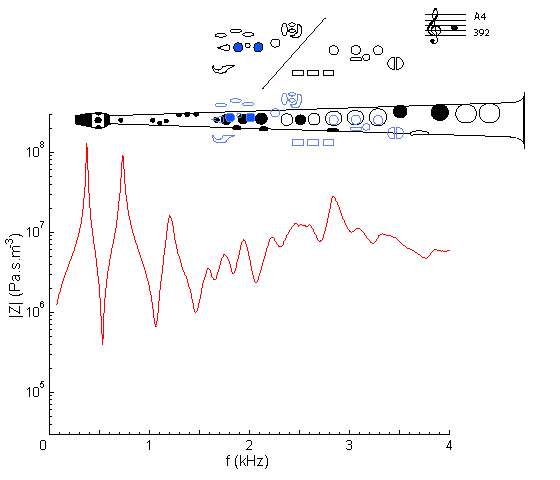

Impedance spectrum of a Bb soprano saxophone measured using fingering for A4.

At frequencies below about 1 kHz, this curve looks rather like that for G4 and G#4, but raised in frequency. At higher frequencies, however, the situation is complicated by the cut-off frequency. Here, the 1 kHz cutoff weakens the third peak. The first peak can be reduced in magnitude and shifted in frequency using a register hole (operated by the octave key): see A5.

For general comments about the first register, see A#3. Compare with the impedance spectrum for a tenor sax on written A4: same fingering but sounding one octave lower.

Sound

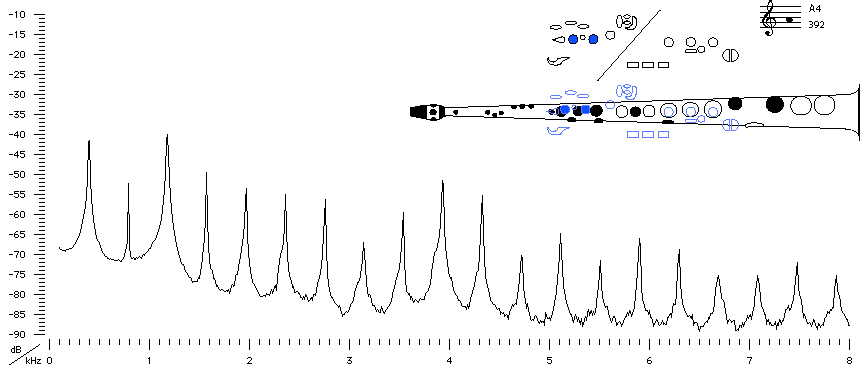

Sound spectrum of a Bb soprano saxophone played using fingering for A4.
For more explanation, see Introduction to saxophone acoustics.

For general comments about the sound spectra of the first register, see A#3, which is the first note of that register.

Sound Clip

You can hear A4 played.


Fingering legend
How were these results obtained?
