Acoustics of the saxophone

Bb soprano saxophone

D7

Music Acoustics UNSW

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

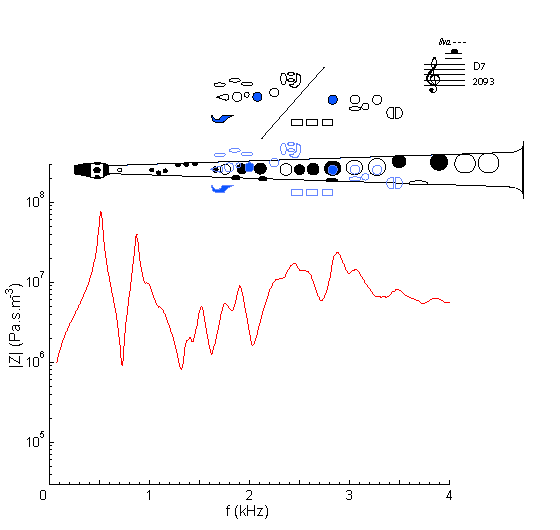

Impedance spectrum of a Bb soprano saxophone measured using fingering for D7.

Sound


Sound spectrum of a Bb soprano saxophone played using fingering for D7.
For more explanation, see Introduction to saxophone acoustics.

Sound Clip

You can hear D7 played.


Fingering legend
How were these results obtained?
