Acoustics of the saxophone

Bb soprano saxophone

C7

Music Acoustics UNSW

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

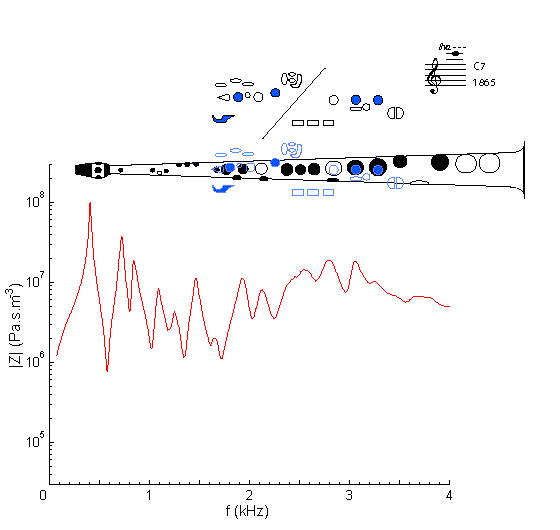

Impedance spectrum of a Bb soprano saxophone measured using fingering for C7.

This is the sixth note in the altissimo or very high range. It is not a member of a simple register: although technically it plays at the seventh impedance peak, few saxophonists (except those discerning ones who have seen this site) would be aware of that. Rather, it is just a cross fingered note whose operating peak falls above the cut-off frequency and so cannot readily be described in terms of an effective length.

The weakness of this peak (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

Sound


Sound spectrum of a Bb soprano saxophone played using fingering for C7.
For more explanation, see Introduction to saxophone acoustics.

Sound Clip

You can hear C7 played.


Fingering legend
How were these results obtained?
