Acoustics of baroque, classical and modern flutes

modern flute
B foot

B4

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7 D7 D#7 E7 F7 F#7 multiphonics

Conventional Fingering

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics


Impedance spectrum of a modern flute with a B foot measured at the embouchure hole using conventional fingering for B4 and B5. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

The flutist uses the same fingering for B4 and B5, but changes the speed, length and shape of the jet. The first four minima can be played.

Sound

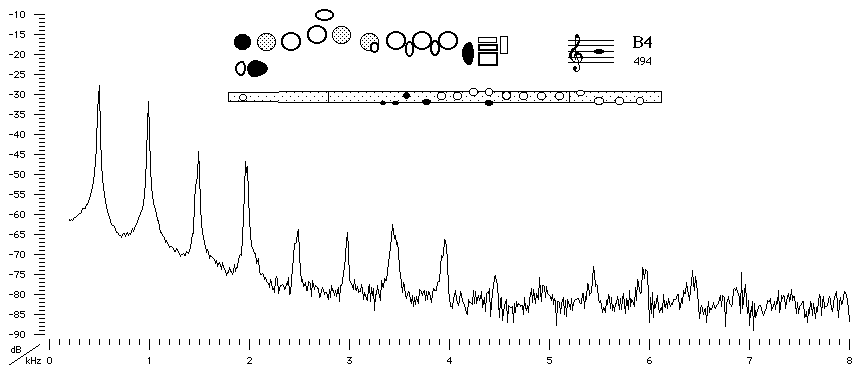

Sound spectrum of a modern flute with a B foot played using conventional fingering for B4.

Sound Clip

You can hear B4 played with conventional fingering by Geoffrey Collins.

Covered Fingering

modern flute B foot

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics


Impedance spectrum of a modern flute with a B foot measured at the embouchure hole using covered fingering for B4 and B5. This is a covered sound, flatter than standard.

Sound

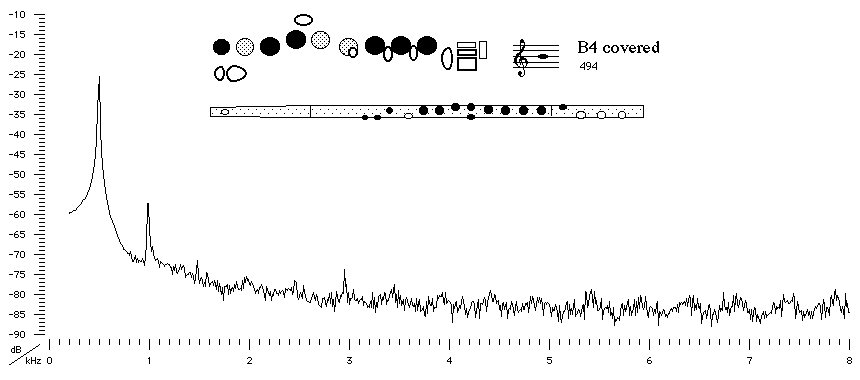

Sound spectrum of a modern flute with a B foot played using covered fingering for B4.

Sound Clip

You can hear B4 played with covered fingering by Geoffrey Collins.



The Virtual Boehm Flute may suggest other fingerings for this note.
Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
