Acoustics of baroque, classical and modern flutes

modern flute
B foot

C5

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7 D7 D#7 E7 F7 F#7 multiphonics

Conventional Fingering

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

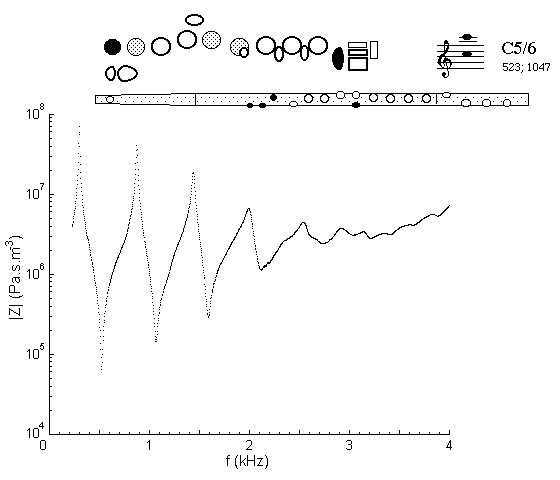

Impedance spectrum of a modern flute with a B foot measured at the embouchure hole using conventional fingering for C5 and C6. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

The flutist uses the same fingering for C5 and C6, but changes the speed, length and shape of the jet. The first three minima can be played.

Sound

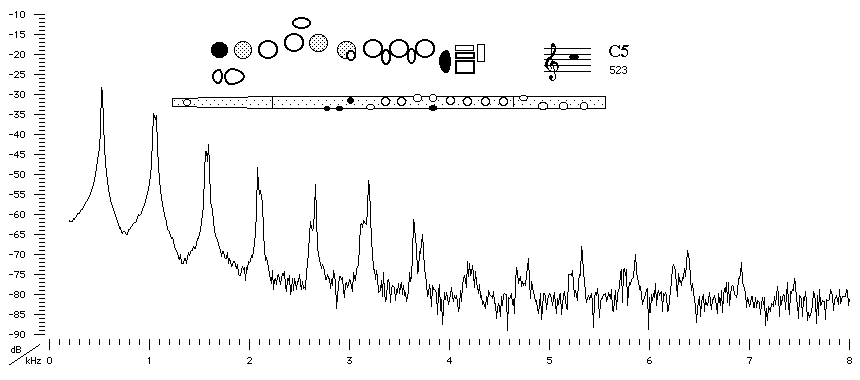

Sound spectrum of a modern flute with a B foot played using conventional fingering for C5.

Sound Clip

You can hear C5 played with conventional fingering by Geoffrey Collins.

Covered Fingering

modern flute B foot

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

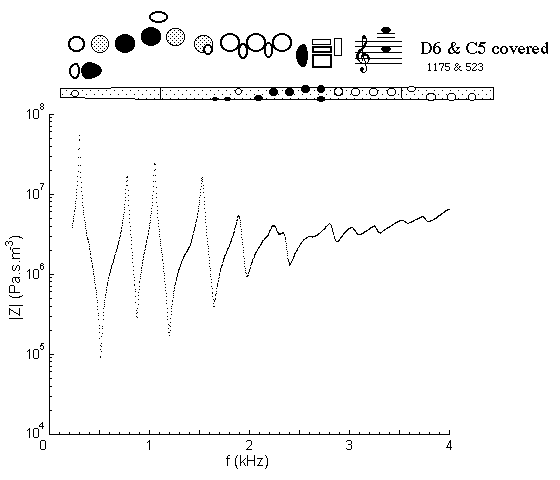

Impedance spectrum of a modern flute with a B foot measured at the embouchure hole using covered fingering for C5 and D6.

This fingering has a reasonably strong impedance minimum for C5, but it is not well supported by minima at harmonics of this fundamental. The result is a soft 'covered' timbre. The fingering may be considered as that for C#5, but with cross fingering, which both lowers the pitch and detunes the higher resonances. It is, of course, the standard fingering for D6, in which the open key operates as a register hole.

Sound

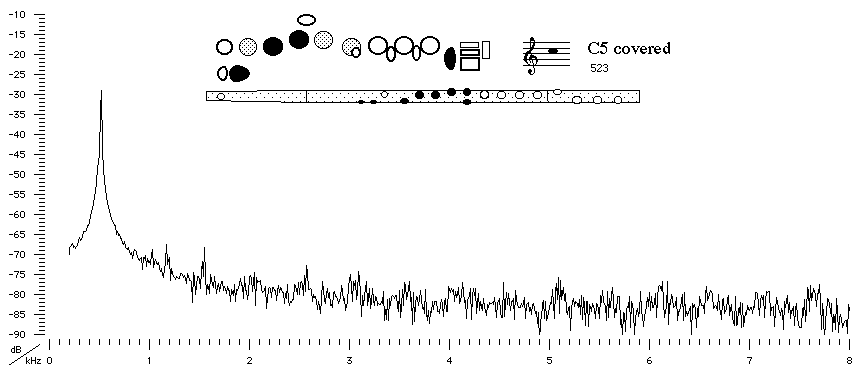

Sound spectrum of a modern flute with a B foot played using covered fingering for C5.

Sound Clip

You can hear C5 played with covered fingering by Geoffrey Collins.



The Virtual Boehm Flute may suggest other fingerings for this note.
Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
