Acoustics of the clarinet

Bb clarinet

F4

Music Acoustics UNSW

index
E3 F3 F#3 G3 G#3 A3 A#3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to clarinet acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb clarinet.
Unless otherwise stated, the impedance spectrum is for a Bb clarinet.

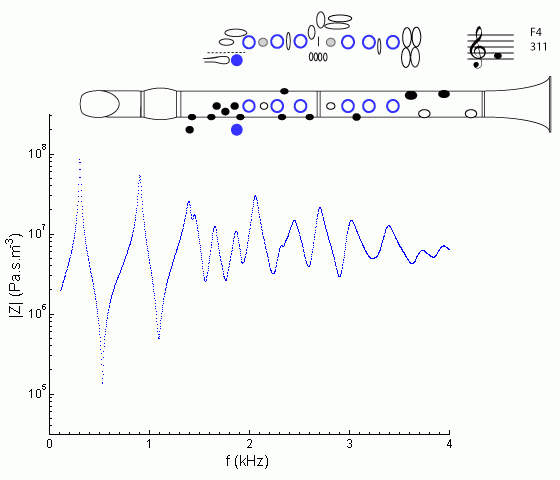

Impedance spectrum of a Bb clarinet measured using fingering for F4.

Observe that, unlike the curves for the notes below D#4, these curves have only two strong harmonic peaks. The sound still has several strong odd harmonics (particularly when played forte, as here), but apart from the first two they are not much assisted by resonances of the bore.

For general comments about the throat register, see E4

Sound

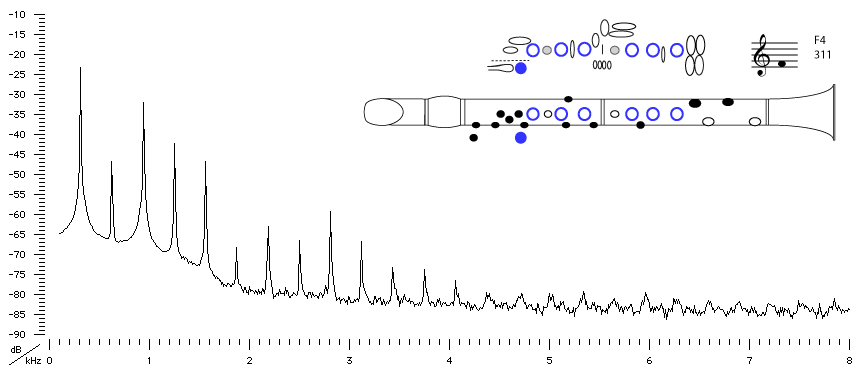

Sound spectrum of a Bb clarinet played using fingering for F4.
For more explanation, see Introduction to clarinet acoustics

Sound Clip

You can hear F4 played.


Fingering legend
How were these results obtained?
