Acoustics of the clarinet

Bb clarinet

C7

Music Acoustics UNSW

index
E3 F3 F#3 G3 G#3 A3 A#3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to clarinet acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb clarinet.
Unless otherwise stated, the impedance spectrum is for a Bb clarinet.

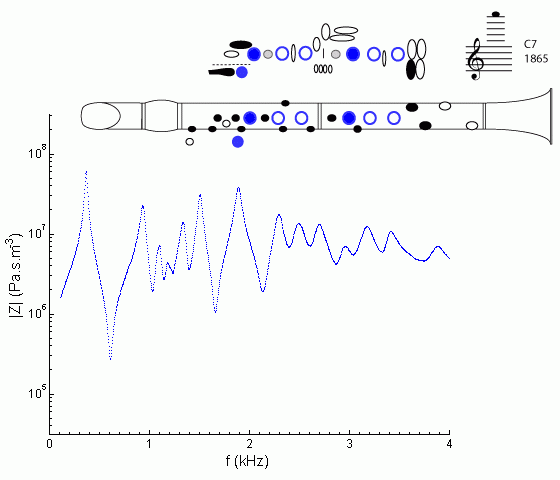

Impedance spectrum of a Bb clarinet measured using fingering for C7.

Note the subtle effects of downstream tone holes at high frequencies. This fingering for C7 is much like the fingering of A#5, except that a tone hole at the end of the clarinet (G#/C# key) is opened. The two impedance curves look much the same at low frequencies, because at low frequencies the waves are well reflected near the first open tone hole. High frequency waves can travel further past open tone holes (the air in the tone hole doesn't have much time to move at high frequencies - see cut-off frequency) and so the pitch of the high frequency peaks are thus affected more than the low frequencies by the subtle effect of reflections near the open tone holes at the end of the bore. For notes so far above the cut-off frequency, the entire bore is involved and one could say that any open tone holes operate not only as register holes, but as minor adjustments to the frequency of the desired resonance.

Sound

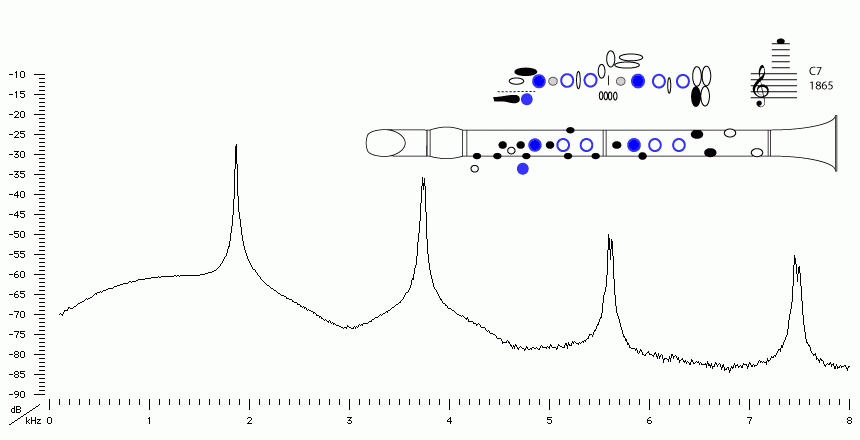

Sound spectrum of a Bb clarinet played using fingering for C7.
For more explanation, see Introduction to clarinet acoustics

Sound Clip

You can hear C7 played.
