Clarinet acoustics: an introduction

A clarinet, a reed and a player: how do they work together? This introduction to the science of clarinets requires little technical knowledge of acoustics. For background on topics in acoustics (waves, frequencies, resonances, decibels etc) click on "Basics" in the navigation bar at left. For scientific papers, select "Publications". For more technical data about each note on the clarinet, see the Clarinet Acoustics home page.

close up of clarinet

      To set the mood, listen to Catherine McCorkill play a couple of phrases from the Mozart concerto.

scholarship ad

Overview

The clarinet player provides a flow of air at a pressure above that of the atmosphere (technically, about 3 kPa or 3% of an atmosphere: applied to a water manometer, this pressure would support about a 30 cm height difference). This is the source of power input to the instrument, but it is a source of continuous rather than vibratory power. In a useful analogy with electricity, it is like DC electrical power*. Sound is produced by an oscillating motion or air flow (like AC electricity). In the clarinet, the reed acts like an oscillating valve (technically, a control oscillator). The reed, in cooperation with the resonances in the air in the instrument, produces an oscillating component of both flow and pressure. Once the air in the clarinet is vibrating, some of the energy is radiated as sound out of the bell and any open holes. A much greater amount of energy is lost as a sort of friction (thermal and viscous loss) with the wall. In a sustained note, this energy is replaced by energy put in by the player. The column of air in the clarinet vibrates much more easily at some frequencies than at others (it resonates at certain frequencies). These resonances largely determine the playing frequency and thus the pitch, and the player in effect chooses the desired resonances largely by suitable combinations of keys. Let us now look at these components in turn and in detail.

(* We have a separate page on air speed, air flow, pressure and power in woodwind and brass instruments.)

The reed controls the air flow

The reed is springy and can bend. In fact it can oscillate like a spring on its own – for a clarinettist this is bad news, as it facilitates the dreaded squeak. Normally, the reed's vibration is controlled by resonances of the air in the clarinet, as we shall see. But it's also true that the reed vibration controls the air flow into the clarinet: all are interconnected.

pictures of clarinet mouthpiece

Let's imagine steady flow with no vibration, and how it depends on the difference in pressure between the player's mouth and the mouthpiece. If you increase this pressure difference, more air flows through the narrow gap left between the tip of the reed and the tip of the mouthpiece. So a graph of flow vs pressure difference rises quickly: it has positive slope. However, as the pressure gets large enough to bend the reed, it acts on the thin end of the reed and tends to push it upwards so as to close the aperture through which the air is entering (the arrow at left in the sketch). Indeed, if you blow hard enough, it closes completely, and the flow goes to zero. So the flow-pressure diagram looks like that in the graph sketched below, where the blue curve represents a small lip or bite force and the red curve a larger one.

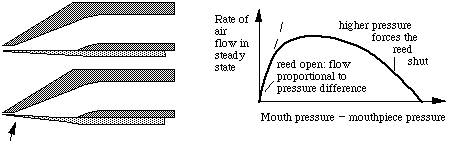

sketch of mouthpiece and diagram of flow vs pressure

The reed (as any clarinettist will tell you) is the key to making a sound. The player does work to provide a flow of air at pressure above atmospheric: this is the source of energy, but it is more or less steady. What converts steady power (DC) into acoustic power (AC) is the reed. The first part of the graph is something like a resistance: flow increases with increasing pressure difference. Just like an electrical resistance, an acoustic resistor loses power. So in this regime, the clarinet will not play, though there is some breathy noise as air flows through gap between reed and mouthpiece, losing energy as turbulence. The operating regime is the downward sloping part of the curve. This is why there is both a minimum and maximum pressure (for any given reed) that will play a note. Blow too softly and you get air noise (left side of the graph), blow too hard and it closes up (where the graph meets the axis on the right). (In the diagram above, the upper curve could represent a stiffer reed or a more open mouthpiece, or less lip force: in call cases, more pressure is required to close the reed.)

Readers with a background in electricity, seeing the region of the curve in which flow decreases with increasing pressure, will recognise this as a negative (AC) resistance: the reciprocal slope of the solid black line, for a playing point at the red dot. The reciprocal slope of the dashed line is a positive resistance for steady flow or DC: this takes energy out of the DC flow, some of which is turned into sound energy by the negative AC resistance. In the clarinet, it is indeed this negative AC resistance that provides the energy lost in the rest of the instrument. Most of the energy is lost inside the bore, in viscous and thermal losses to the walls, and a relatively small fraction is emitted as radiated sound.

Another way of understanding the active role of the reed is to consider a small wave of excess pressure arriving from the bore into the mouthpiece. This opens the reed aperture a little, letting in more air from the player's mouth. That extra air raises the pressure in the mouthpiece still further, so a larger pressure wave is reflected back down the bore. Conversely, a negative pressure wave arriving in the mouthpiece closes the reed a little, reducing the flow and futher reducing the pressure.

Articulation

The preceding paragraphs describe how, with suitable values of mouth pressure and lip force, the reed can amplify a pressure signal arriving in the mouthpiece from the bore. Typically, to start a note at the beginning of a phrase, the tongue releases the reed, which sends a small pulse of air pressure into the mouthpiece, where it travels down the bore, reflects, comes back and is amplified. Its amplitude grows until it is comparable with the blowing pressure. There is much more to this process, so we have studied it in detail and made this page about tonguing and articulation.

Playing softly and loudly

This diagram allows us to explain something about how the timbre changes when we go from playing softly to loudly. For small variation in pressure and small acoustic flow, the relation between the two is approximately linear, as shown in the diagram below at left. A nearly linear relation gives rise to nearly sinusoidal vibration (i.e. one shaped like a sine wave), which means that, even if the fundamental in the sound spectrum is strong, the higher harmonics are weak. This gives rise to a mellow timbre. (Have a look at the spectra for different dynamic levels on the notes E3, G4 or A6. Note that the increase in the level of higher harmonics is much greater than that in the fundamental.)

sketches of playing regimes for p and ff

This diagram sketches what happens if you increase the pressure without changing the reed aperture. (Warning: what happens in playing more loudly is usually more complicated than this, because higher blowing pressure tends to close the aperture, which tends to reduce the flow, and players simultaneously reduce the bite force which—see the previous graph—increases the flow.) Higher pressure moves the operating point to the right, and it also increases the range of pressure. This means that the (larger) section of the curve we use is no longer approximately linear. This produces an asymmetric oscillation. It is no longer a sine wave, so its spectrum has more higher harmonics. (Centre diagram.) Have a look at the spectra for different dynamic levels on the note A#3. Observe that the increase in the level of higher harmonics is much greater than that in the fundamental.

When we blow hard enough (and even if we relax the bite), the reed will close for part of the part of the cycle when the pressure in the mouthpiece is low due to the standing wave inside the instrument. So the flow is zero for part of the cycle. The resultant waveform is 'clipped' on one side (diagram at right), and contains even more high harmonics. As well as making the timbre brighter, adding more harmonics makes the sound louder as well, because the higher harmonics fall in the frequency range where our hearing is most sensitive (See What is a decibel? for details). Conversely, playing in the linear range of this playing curve gives few high harmonics, so the minimum playing level of the clarinet can be very quiet indeed, a feature often used by composers.

The variation in pressure and flow (rather than the average values) are what make the sound loud: the length of the thick line in the sketched graphs above. Blowing harder makes the gain of the reed higher and that increases the amplitude of the standing waves in the bore. Further, blowing harder eventually takes you into the non-linear and clipping ranges that produce stronger high harmonics, and therefore a sound that is both louder and brighter. However, if you blow too hard, you close the reed completely and it stays closed. In practice, players relax the bite when they play loudly, so the whole curve moves up (from the lower red to the upper blue curve in the preceding graph).

You can prevent the reed closing with a harder reed. A harder reed requires greater pressure differences to bend, and so allows you to blow harder without entering the non-linear or clipping ranges. On the other hand, the smaller nonlinearity makes the sound more mellow (and therefore less loud, all else equal). This is complicated by the embouchure: because of the curvature of the lay, the position where you place your lower lip and how hard you bite makes a difference to the effective length and therefore stiffness of the reed. It's like a lever whose fulcrum is moved. Mouthpiece design also influences the amplitude at which non-linear or clipping ranges begin: a mouthpiece with an obstruction near the reed tip becomes less linear at lower pressures and so produces a brighter (perhaps harsher?) and louder sound.

While talking about decibels, we should mention that spectra, including those on our clarinet site are usually shown on a decibel scale. This means that one notices easily on the spectrum a harmonic that is say 20 dB weaker than the fundamental, even though it has 10 times less pressure and 100 times less power. What is important is that your ear notices it too, because of the frequency dependence referred to above. However, it is much more difficult to notice the presence of harmonics if you look at the waveform.

Control parameters for playing

For any given fingering, reed and mouthpiece set-up, the player can make a range of sounds, varying the pitch, loudness and spectrum. Various control parameters are available to the player: pressure in the mouth can be varied, so can the bite force, the position at which the lip presses on the reed, the damping of the lip and sometimes the configuration of the vocal tract. To investigate this, we used the 'robot player' to vary these parameters in a controlled way. We report these results in more detail on the clarinet robot site, along with links to a scientific report on that project.

Tonguing and articulation

The tongue can completely or partially interrupt the air flow by displacing and releasing the reed, which is how most notes are started. During the attack, the reed is inputting more energy than the bore is losing, so the sound grows, and conversely at the end of the note. There are quite a lot of effects to discuss here, so we have a separate page for that.

The clarinet is a 'closed' pipe

The clarinet is open at the far end or bell. But it is (almost) closed at the other end by the reed. For a sound wave, the tiny aperture between reed and mouthpiece – a much smaller cross section than the bore of the instrument – is enough to cause a reflection almost like that from a completely closed end. The rest of the clarinet is roughly cylindrical. Important exceptions are the mouthpiece which rapidly increases in cross section as we descend from the tip, the flare in the lower joint and the bell. (If you take the bell off, it affects the very low notes but has less effect on higher notes in the first register.

The behaviour of closed and open pipes are explained in Open vs closed pipes (Flutes vs clarinets), which gives more explanation of this animation.

For the purposes of this simple introduction to clarinet acoustics, we shall now make some rough approximations. First, we shall pretend that it is a simple cylindrical pipe – in other words we shall assume that all holes are closed (down to a certain point, at least), that the bore is cylindrical, and that the mouthpiece end is completely closed. This is a crude approximation, but it preserves much of the essential physics, and it is easier to discuss. We look at many of the complications in turn below and when explaining the real results. (See Inharmonic Resonances for a discussion of some of the effects of the non-cylindrical shape.)

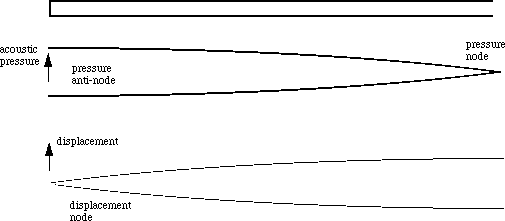

sketch of clarinet

The natural vibrations of the air in the clarinet, the ones that cause it to play notes, are due to standing waves. (If you need an introduction to this important concept, see standing waves.) What are the standing waves that are possible in such a tube?

The fact that the clarinet is open to the air at the far end means that the total pressure at that end of the pipe must be approximately atmospheric pressure. In other words, the acoustic pressure (the variation in pressure due to sound waves) is near zero. The mouthpiece end, on the other hand, can have a maximum variation in pressure. Now the distance between a zero and a maximum on a sine wave is one quarter of a wavelength. So, the longest standing wave that can satisfy these conditions is one that has a wavelength four times the length of the instrument, as shown at the top of the next figure: it has zero pressure at the open end (called a pressure node). Inside the tube, the pressure need not be atmospheric, and indeed the maximum variation in pressure (the pressure anti-node) occurs in the mouthpiece. The standing wave is sketched below. The bold line is the variation in pressure, and the fine line represents the displacement or the amplitude of the vibration of the air molecules. The displacement curve has an anti-node at the bell: air molecules are free to move in and out at the bell but, in the approximation where the mouthpiece is closed, there is little acoustic flow in the mouthpiece. (There is of course DC flow, but that does not affect the standing waves directly.)

The frequency equals the wave speed divided by the wavelength, so this longest wave corresponds to the lowest note on the instrument: D3 on a Bb clarinet. (See standard note names, and remember that clarinets are transposing instruments, so that D3 is written as E3 for the Bb clarinet. Hereafter we refer only to the written pitch.) You might want to measure the length of your instrument, take v = 350 m/s for sound in warm, moist air, and calculate the expected frequency. Then check the answer in the note table. (You will find that the answer is only approximate, because of end corrections.)

photo of clarinet

You can play (written) E3 with this fingering, but you can also play other notes by overblowing – by changing your embouchure and changing the blowing pressure. These other notes correspond to the shorter wavelength standing waves that are possible, subject to the condition that the sound pressure be zero at the bell and a maximum in the mouthpiece. The first three of these (solid lines) are shown in the diagram below.

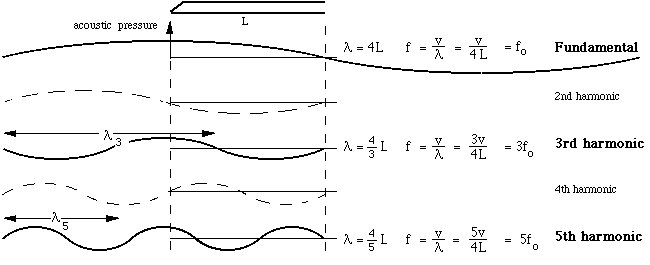

standing waves in the clarinet

These three notes are approximately members of the harmonic series. Notes with these frequencies have the written pitches shown below. The complete harmonic series has the frequencies fo, 2fo, 3fo, 4fo, 5fo etc. The clarinet, under these conditions, plays (approximately) the odd members of the series only. The missing even harmonics and their waves are shown in dashed lines and in parentheses in the diagrams. (You might like to compare this with the analogous diagram for the flute, which has all harmonics present.) There is also a more detailed discussion of the harmonic series of open and closed pipes.

Harmonics of the lowest note on a clarinet.           Recording of notes played using only the fingering for the lowest note.

The notes in the diagram are the harmonics of the fundamental. The notes in the sound file are those played by overblowing, without using register keys (which is one reason why they don't sound pretty and don't start cleanly). You will observe that the played notes are successively flatter than the harmonic frequencies. The third is slightly flatter than B4, the fifth is about a semitone flat, the seventh more flat again. This is due to effects of the reed (itself a deformable element approximately in parallel with the bore) and effects of the bell (longer wavelengths penetrate less into the bell before being reflected.)

How the reed and pipe work together

To sum up the preceding sections: the bore of the clarinet has several resonances, which are approximately in the ratios of the odd harmonics, 1:3:5, but successively more approximate with increasing frequency – we'll see why below under frequency response. The reed has its own resonance – which is approximately what you hear when you produce a squeak. One good way to produce a squeak is to put your teeth on the reed. In normal playing, with your lower lip touching the reed, you damp (ie reduce the strength of) the reed's resonances considerably. This allows the resonances of the bore to 'take control'. To oversimplify somewhat, the clarinet normally plays at the strongest bore resonance whose frequency is lower than that of the reed. (We shall see below how register holes are used to weaken the lower resonance or resonances and thus make one of the higher resonances the strongest.)

When the clarinet is playing, the reed is vibrating at one particular frequency. But, especially if the vibration is large, as it is when playing loudly, it generates harmonics (see What is a sound spectrum?). The reed vibration tends to have both odd and even harmonics. However, in the low registers at least, only the odd harmonics set up, and are in turn reinforced by, standing waves. Consequently, the sound spectrum in the low register has strong first and third harmonics, but weak second and fourth. This is not true of the clarino register and above.

Spectrum and registers of the clarinet

In the section on harmonics above, each of the standing waves in the sketch above corresponds to a sine wave. The sound of the clarinet is a little like a sine wave when played softly, but successively less like it as it is played louder. To make a repeated or periodic wave that is not a simple sine wave, one can add sine waves from the harmonic series. So E3 on the clarinet contains some vibration at E3 (fo), some at B4 (3fo), some at G#5 (5fo) etc. The 'recipe' of the sound in terms of its component frequencies is called its sound spectrum. The predominant presence of odd harmonics in the lowest or chalumeau register gives this register its characteristic 'hollow' timbre. (See the discussion of general features of the chalumeau register on the page for the note E3.) From about E4 up to A#4, the even harmonics become more important. This range overlaps approximately with what clarinettists call the throat register. The notes in this range have only two bore resonances that coincide well with harmonics, and so pitch of notes in this range is easier to 'bend' than that of notes in the chalumeau register. Once the speaker key is used, the systematic difference between odd and even harmonics almost disappears, and the timbre becomes bright and clear. (See the discussion of general features of the clarino register on the page for the note B4.) This difference in timbre is one awkwardness associated with the 'break' between A#4 and B4; the other is the fingering difficulty 'to cross the break' – moving several fingers and a thumb simultaneously. The register that uses only the speaker key as a register hole (see below) is called the clarino register. The altissimo register uses the hole for the left index finger as a register hole as well. (See the discussion of general features of the altissimo register on the page for the note C#6.)

Opening tone holes

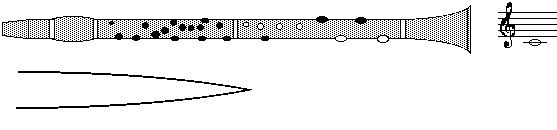

If you open the tone holes, starting from the far end, you make the pressure node move up the pipe, closer to the mouthpiece – it is very much like making the pipe shorter. Starting near the bell, each opened tone hole raises the pitch by a semitone, which requires a pipe that is about 6% shorter. After you open all of the right hand finger holes, as shown below, you have the fingering for C4, which is shown below.

Observe that this note, which uses only a little more than half of the length of the clarinet, is still lower than the lowest note on a flute. (For a Bb clarinet, written C4 = sounding Bb3, the lowest note on a flute is B3 or C4.) This is one of the big advantages of a closed pipe: you get low notes with a shorter pipe.

For the moment, we can say the an open tone hole is almost like a 'short circuit' to the outside air, so the first open tone hole acts approximately as though the clarinet were 'sawn off' near the location of the tone hole. This approximation is crude, and in practice the wave extends somewhat beyond the first open tone hole: an end effect.

(For the technically minded, we could continue the electrical analogy by saying that the air in the open tone hole has inertia and is therefore actually more like a low value inductance. The impedance of an inductor in electricity, or an inertance in acoustics, is proportional to frequency. So the tone hole behaves more like a short circuit at low frequencies than at high. This leads to the possibility of cross fingering, which we have studied in more detail in classical and baroque flutes.)

The frequency dependence of this end effect means that the low note played with a particular fingering has a smaller end effect than does the corresponding note in the next register. If the clarinet really were a perfect cylinder with tone holes, then the registers would be out of tune. This effect is removed by variations or perturbations of the cylindrical shape, including the shape of the mouthpiece, an enlarging of the upper region of the bore, and a gradual flare in the bottom half of the instrument, leading to the bell. See Inharmonic Resonances for a discussion of some of the effects of the non-cylindrical shape.)

Register holes

Holes can also serve as register holes. For instance, if you play Bb3 (call this frequency fo) and then open the register key (or speaker key), you are opening a hole one third of the way down the (closed part of the) instrument. (See the middle diagram below.) This hole disrupts the fundamental, but has little effect on the higher harmonics, so the clarinet 'jumps up' to F5 (3fo).

Where to put it? The acoustically obvious place to put a register hole is at a pressure node of the upper note which is also a region of large pressure variation for the lower note. Opening the bore to atmospheric pressure at a pressure node makes no difference to that note. The trouble is that each note in the upper register has its pressure node at a different position. One can imagine a clarinet that had a separate register hole for each note, but that would be a lot of keys. In fact, only one register hole is used for the second register from B4 to C6. Looking at the diagram below, we see that it its position is a compromise: for B4 it is well below the pressure node, and for C6 well above. This is not a big problem in practice. The register hole is small, so it is not really a 'short circuit', except at low frequencies. (We explain how the mass of the air seals the hole at high frequencies below.) So it does not too much affect the third and higher harmonics. It does however disrupt (and detune) the fundamental, and that is its purpose: to stop the instrument dropping down to its bottom register.

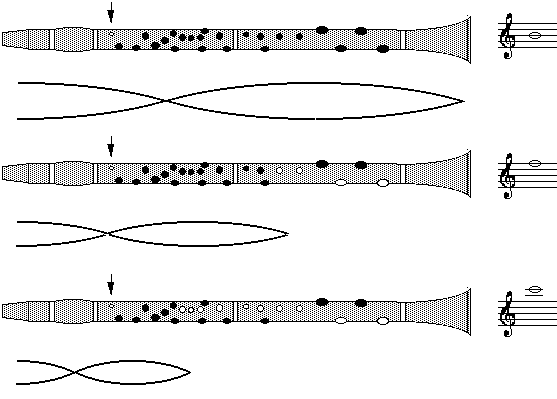

diagram showing use of register key

We mention in passing that the saxophone has two dedicated register holes for the second register and an automated mechanism that allows only one key to operate the hole appropriate to each end of the range. Multiple register keys have been tried on the clarinet, but have never become popular.

The speaker key is the register key used for the second register. In higher registers, other register holes are used: the altissimo register uses the hole that is normally closed by the index finger of the left hand. This hole is designed primarily as a tone hole, so it is bigger than it need or should be for an ideal register hole. This defect is not so important because it is used only for high frequencies, where its inertance is large. However some players partly cover this hole (half-holing) when using it as a register hole.

    Let us open an aside to answer a question that has been asked a few times: "If the speaker key destroys the first resonance at f, but none of the others, why is it that the sound spectrum in the clarino register has only harmonics 3f, 6f, 9f etc? What happened to the fifth harmonic?" One can investigate the basis of this question by looking at the spectra for E3 and B4.

    When we play E3, the reed vibrates at the frequency of E3 (about 147 Hz for a Bb clarinet). In a steady vibration, only harmonics (odd or even) of this frequency are possible, and they are exactly harmonic. (See How harmonic are harmonics?.) The odd harmonics are supported by the resonances of the bore, and so the resultant sound spectrum is rich in odd harmonics but has weaker even harmonics, at least at low frequencies. (See How the reed and pipe work together.)

    When we play B4, the reed vibrates at the frequency for this note (about 440 Hz for a Bb clarinet), which is three times the frequency of E3. Again, in steady vibration only harmonics (odd or even) of this frequency are possible. The fifth resonance of E3 (approximately G#5) is still present, as the impedance spectrum for B4 shows, but there is nothing to put energy into a vibration at that frequency.

    Observe also that we are now in the clarino register (about which see the general comments on the page for B4). The resonances that one might have expected to support the 3rd and 5th harmonics of B4 – i.e. the 9th and 15th harmonics of E3 – are not close enough in frequency to be of any help. However, the acoustic response of the clarinet is strong enough to help all of the harmonics of the reed to some extent, and the resultant sound spectrum has no strong differences between even and odd harmonics.

We return to discuss register holes in more detail below, after we have discused the frequency response.

Cross fingering

On the modern clarinet, successive semitones are usually played by opening a tone hole dedicated to that purpose. Being roughly a closed, cylindrical pipe the clarinet overblows a twelfth, and so one would need eighteen tone holes to cover the chalumeau and throat registers before repeating fingerings using the speaker key as a register hole. Because players don't have this many fingers, the clarinet requires keys and clutch mechanisms, so that one finger can close or open two or more holes. When cross fingering is used, it is usually used to control other holes. For instance, one of the fingerings for the note B3 is a simple fingering: the right hand index finger closes its hole, and the right ring finger opens tone hole with a key (upper figure below). The other is a cross fingering: all three fingers on the left hand, plus the middle finger on the right close their holes.

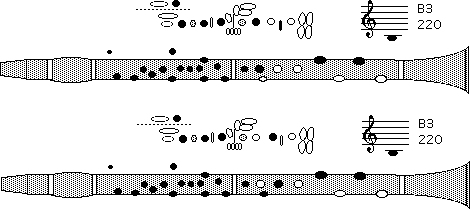

pictures of simple and cross fingerings

An open tone hole connects the bore to the air outside, whose acoustic pressure is approximately zero. But the connection is not a 'short circuit': the air in and near the tone hole has mass and requires a force to be moved. So the pressure inside the bore under a tone hole is not at zero acoustic pressure, and so the standing wave in the instrument extends a little way past the first open tone hole. (There's more about this effect under Cut-off frequencies.) Closing a downstream hole extends the standing wave even further and so increases the effective length of the instrument for that fingering, which makes the resonant frequencies lower and the pitch flatter.

The effect of cross fingerings is frequency dependent. The extent of the standing wave beyond an open hole increases with the frequency, especially for small holes, because it takes more force to move the air in the tone hole at high frequencies. This has the effect of making the effective length of the bore increase with increasing frequency. As a result, the resonances at higher frequencies tend to become flatter than strict harmonic ratios. Because of this, often one cannot use the same cross fingerings in two different registers. Because the clarinet's tone holes are relatively large, cross fingering makes only modest changes to pitches in the chalumeau and clarino registers, but they can sometimes be useful in adjusting the pitch.

A further effect of the disturbed harmonic ratios of the maxima in impedance is that the harmonics that sound when a low note is played will not 'receive much help' from resonances in the instrument. (Technically, the bore does not provide feedback for the reed at that frequency, and nor does it provide impedance matching, so less of the high harmonics are present in the reed motion and they are also less efficiently radiated as sound. See Frequency response and acoustic impedance. To be technical, there is also less of the mode locking that occurs due to the non-linear vibration of the reed.) As a result, cross fingerings in general are less loud and have darker or more mellow timbre than do the notes on either side. You will also see that the impedance spectrum is more complicated for cross fingerings than for simple fingerings, especially in the region around 1.3 to 2 kHz.

We have studied cross fingerings more extensively on flutes than on clarinets, by comparing baroque, classical and modern instruments. (We have not yet studied a chalumeau or classical clarinet to compare with the modern instrument.) See cross fingering on flutes or download a scientific paper about crossfingering.

Other effects of the reed

As well as controlling the flow of air, the reed has a passive role in clarinet acoustics. When the pressure inside the mouthpiece rises, the reed is pushed outwards. Conversely, suction draws the reed in towards the bore. Thus the reed increases and decreases the mouthpiece volume with high or low pressure. (Techncially, we say it is a mechanical compliance in parallel with the bore.) Indeed, it behaves a bit like an extra volume of air (a millilitre or two, depending on hardness), which could also be compressed and expanded by changing pressure in the mouthpiece. It has the effect of lowering the frequency of each resonance a little. However, soft reeds move more than hard reeds, so soft reeds lower the frequency more than do hard reeds. Further, this effect is greater on high notes than on low, so soft reeds make intervals narrower and hard reeds make them wider. This is useful to know if you have intonation problems. (See also tuning.)

Cut-off frequencies

When we first discussed tone holes, we said that, because a tone hole opens the bore up to the outside air, it shortened the effective length of the tube. For low frequencies, this is true: the wave is reflected at or near this point because the hole provides a low impedance 'short circuit' to the outside air. For high frequencies, however, it is more complicated. The air in and near the tone hole has mass. For a sound wave to pass through the tone hole it has to accelerate this mass, and the required acceleration (all else equal) increases as the square of the frequency: for a high frequency wave there is little time in half a cycle to get it moving.

sketch: inertance of air in open tone holes

So high frequency waves are impeded by the air in the tone hole: it doesn't 'look so open' to them as it does to the waves of low frequency. Low frequency waves are reflected at the first open tone hole, higher frequency waves travel further (which can allow cross fingering) and sufficiently high frequency waves travel down the tube past the open holes. Thus an array of open tone holes acts as a high pass filter: some thing that lets high frequencies pass but rejects low frequencies. (See filter examples.) This is one of the things that limits the ability to play high notes on the clarinet. The stiffness of the reed is another: a clarinet will only play notes with frequencies lower than the natural frequency of the reed.

The player can alter the cut-off frequency, and this is one of the effects used to achieve the spectacular glissando in the opening bars of Gershwin's Rhapsody in Blue. The player begins by gradually sliding the fingers off the tone holes, with the principal effect of changing smoothly the end effect at the open tone hole, and so the pitch. This provides most of the glissando up to the thorat register. From this register up, the player changes the position and force of the lower lip on the reed, thereby changing its natural frequency and also uses the resonances in the vocal tract. Normally, the resonances of the instrument are so strong (have such high acoustic impedance--see below) compared with those of the vocal tract that the latter make only modest changes to the pitch. However, the player can reduce the strength of the instrument resonances by lowering the cut-off frequency below that of the note being played. To do this, the fingers are kept very near to the tone holes, partially covering them, so that the tone holes are effectively very small. In this state, the resonances of the vocal tract can be stronger than those of the instrument, so the note played tends to follow that of the tract resonances, which the player increases smoothly – with some considerable help from the change in the natural frequency of the reed as the player's bite changes simultaneously. There is a detailed discussion of these effects on this web page in this scientific paper.

There is a more detailed explanation of cut-off frequencies and their effects on this page.

Frequency response and acoustic impedance of the clarinet

The way in which the reed opens and closes to control the air flow into the instrument depends upon the acoustic impedance at the position of the reed, which is why we measure this quantity. The acoustic impedance is simply the ratio of the sound pressure at the measurement point divided by the acoustic volume flow (which is just the area multiplied by the particle velocity). If the impedance is high, the pressure variation is large and so it can control the reed. In fact, the resonances, which are the frequencies for which the acoustic impedance is high, are so important that they 'control' the vibration of the reed, and the instrument will play only at a frequency close to a resonance. (There is simple explanation on What is acoustic impedance and why is it important? and more formal explanation here.) The section below shows how the major features of the clarinet's shape give rise to its acoustic impedance spectrum, and thus to how it operates.

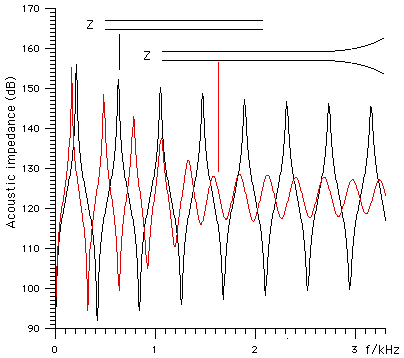

acoustic impedance: effect of bell

This figure shows in black the calculated impedance spectrum for a simple cylinder (the impedance is given in decibels: 20 log10(Z/Pa.s.m-3). A suitable reed attached to the input of this tube would play near the frequencies of the peaks, which are in the ratios of the odd harmonics 1:3:5:7 etc (see open and closed pipes for more explanation, and/or compare with the comparable curves for a saxophone). The curve in red is for the same cylinder, with a simple bell at the end. Note that the bell makes the pipe longer, so each peak and trough has been moved to lower frequencies, as expected. Note however the change in the overal shape: all of the resonances are now weaker (extrema are smaller). This is because the bell helps the sound waves in the bore to radiate out into the air. (Incidentally, the presence of a large, effective bell is what makes brass instruments loud: try playing a trombone with the tuning slide taken off.) More sound radiated means less sound reflected, so the standing waves are weaker.

This effect is less noticeable at low frequencies: the first maximum and minimum are not weakened very much, because the bell is much smaller than the wavelengths of the low frequency waves, and so is not very effective at radiating these waves. (Incidentally, this frequency dependent effect of the bell is what makes brass instruments brassy: the bell-less trombone has a sound that is less brassy, as well as softer.)

The effect of the bell is that of a high pass filter: it allows high frequencies to radiate out of the instrument, rather than reflecting back up the bore to help establish the standing wave. In this, it acts much like the cut-off frequency effect of the tone holes. In fact, one important purpose of the clarinet's bell is to provide a high pass filter for the lowest few notes, so that they have a cut-off frequency and so behave more similarly to the notes produced with several tone holes open.

We could state this another way: for all of the notes on a clarinet except the lowest few in the chalumeau and clarino registers, the array of open tone holes acts as a high pass filter. For the few notes mentioned, however, few or no tone holes are open, so the reflection condition is different, and so a purely cylindrical clarinet would have a noticeably different timbre for these few notes. So the bell performs a similar function for these notes. At frequencies well above the cut-off, the bell has other functions, including directional radiation of high frequencies.

So that is one reason why the clarinet departs from its approximately cylindrical shape for the last few tone holes. It is also non-cylindrical for a few centimetres at the other end. Which brings us to the effect of the mouthpiece.

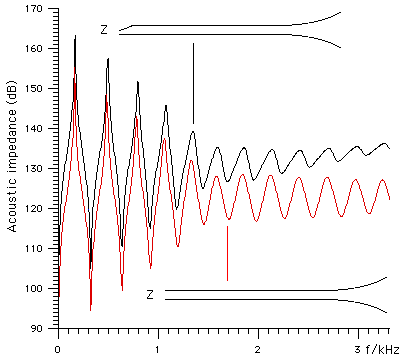

acoustic impedance: effect of mouthpiece

Here, the red curve is the same as the one we saw above: that for a cylinder with a bell. Now the black curve is for a cylinder plus a bell plus a conical constriction at the opposite end, which has approximately the same effect as a mouthpiece: it reduces the cross sectional area of the bore gradually as it approaches the reed. This has several effects.

First, it raises the impedance overall. This is because it functions like a horn or an impedance matching transformer, connecting a small area (where the same flow would require more pressure and therefore high impedance) to a large area.

Second, it does this more effectively at high frequency for maxima (all of which are shifted by 8-10 dB) than for minima (where the high frequency minima are much less deep than are the low frequency minima). This however is not important to the clarinet, because it operates at maxima, but is an important consideration in the design of flutes.

Third, it makes the peaks and troughs asymmetric. At high frequencies, the minima move to lower frequencies while the maxima occur at higher frequencies.

Of course the bore is not exactly cylindrical: there are local variations in radius, particularly near the bell and the barrel. The effects of these are to make subtle differences to the relative tuning of the registers. (See Inharmonic Resonances about this.)

Vocal tract effects

In the simplest model, the mouth is considered as a source of high pressure air, and the reed is loaded acoustically only by the acoustic impedance of the bore of the clarinet, which is downstream. The acoustical effects of the vocal tract (upstream) are often small. They can, however, be important and even dominant if the player produces a resonance in the vocal tract whose acoustic impedance is comparable with that of the bore. This is easier to do in the higher registers, where the instrument's resonances are weaker. Vocal tract resonances are important in various effects including pitch bending and the famous glissando from Rhapsody in Blue. Here is a web page and a scientific paper on vocal tract effects in the clarinet – more are listed below.

The effect of reed hardness

In the preceding section we have ignored the compliance of the reed, discussed above. This acts in parallel with the bore, and its impedance decreases at high frequency, so its effect is to reduce the rise in impedance with frequency: softer reeds give lower overall impedance at high frequency. Further, the very high resonances are weaker and occur at lower frequency when you use a soft reed.

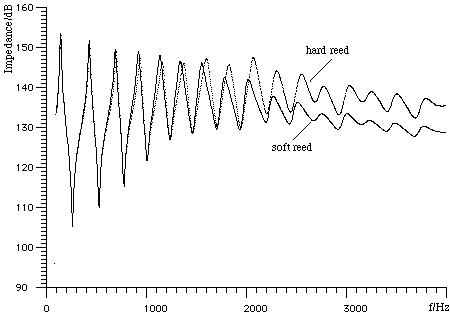

acoustic impedance: effect of reed hardness

On this figure, the single dots are the experimentally measured impedance spectrum for E3, with a value of the compliance corresponding to a hard reed. The continuous line (actually the experimental points joined together) shows the spectrum for a soft reed. At low frequencies, there is not much difference, but you can already see a slight difference in frequency: the hard reed plays sharper, all else equal. As you go to higher frequencies, you see that the soft reed gives lower peaks. Lower peaks are harder to play, so the hard reed makes it easier to play high notes. (Unfortunately, a hard reed also makes it easier to play squeaks.)

To understand more about the detailed shape of these impedance curves, see the discussion of the experimental results for E3.

More about register holes

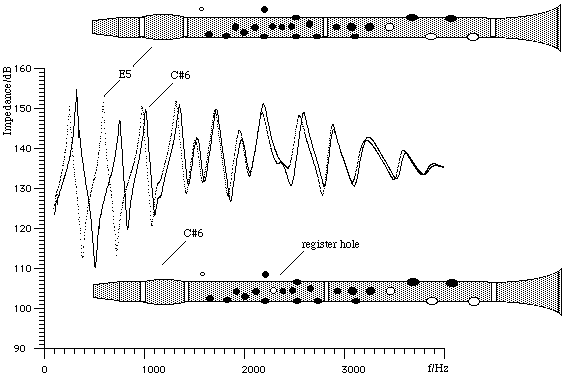

Now that we know about impedance spectra, we can better understand the effect of register holes, which we met above. In the graph below, the single dots are the experimentally measured impedance spectrum for E5, which plays at the second maximum of the curve. The continuous line is that for C#6, which plays at the third maximum. The only difference in fingering is that the hole for the left index finger is opened, and here acts a register hole. Notice that its effect is small at high frequencies. (As we saw above, the inertia of air in the hole effectively 'seals' the hole, so that high frequency waves pass by as though it were closed).

LH index finger acts as a register hole

At low frequencies, however, the effect is greater, and this register hole substantially reduces the height of the second maximum. It also raises its frequency, and takes it out of the harmonic series with other peaks. These effects, especially the former, make the second peak harder to play, and so (provided you use the appropriate embouchure), the instrument will play the third maximum, which is C#6.

We have not mentioned the first maximum. It has already been weakened and shifted by the speaker key, which is open here. However, its maximum is not all that weak and a careless embouchure and low blowing pressure could find you dropping down to a muffled low note near that frequency. Further, the fourth peak is pretty high, too. With a hard reed and blowing hard, there's a danger of jumping up to this note, too. Which is why the altissimo register is hard to play. (There is more discussion of the altissimo register on the experimental page for C#6).

More detailed information and your questions

Now it's time to look at the set of measured impedance spectra and relate them to the sounds and sound spectra produced. Go to clarinet acoustics and click on the names of the notes. Our Music Acoustics FAQ has many entries on reed instruments. Or, if the answer's not there, you can ask.

Scientific papers on articulation and transients in single reeds

Papers on vocal tract effects in single reeds (there is also this nontechnical page)

Paper on blowing pressure and mouth force effects

Conference papers

More papers on music acoustics are listed here.

This photo shows the common orchestral woodwinds in ascending order of pitch. (Figure from The acoustics of woodwind musical instruments. Click to enlarge.)

photo of the main orchestral winds

For further reading, we recommend
