modern flute
B foot
C6
| Acoustics of baroque, classical and modern flutes |
modern flute
|
C6 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
|
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance |
The flutist uses the same fingering for C5 and C6, but changes the speed, length and shape of the jet.

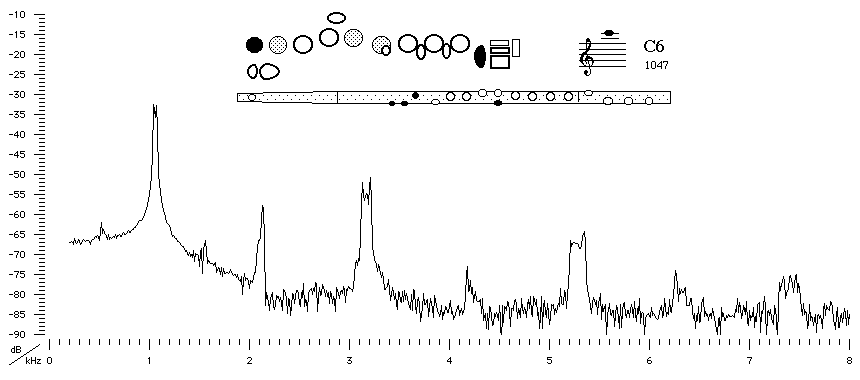

Sound spectrum
of a modern flute with a B foot played using fingering for C6.
You can hear C6
played by Geoffrey Collins.
may suggest other fingerings for this note.| Acoustic measurements are available for these flutes - modern B, modern C, classical C, classical D, classical flared, baroque Sound clips are available for modern B, classical flared and baroque |
To compare flutes, it is easiest to open a separate browser window for each instrument. |
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
a closed tone hole
an open tone hole
