Acoustics of the saxophone

Bb tenor saxophone

F7

Music Acoustics UNSW

Conventional Fingering

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

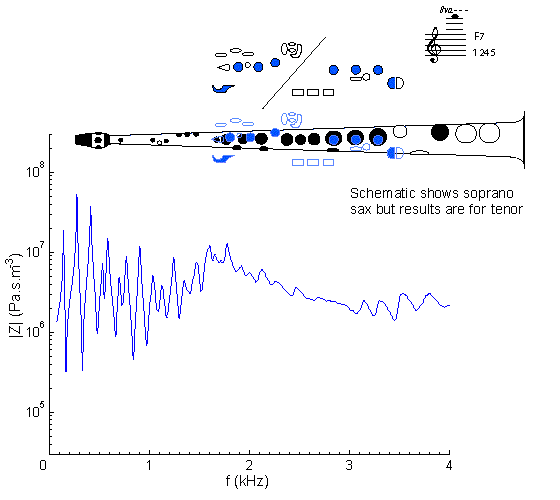

Impedance spectrum of a Bb tenor saxophone measured using fingering for F7.

This is the eleventh note in the altissimo or very high range. The fingering shown here for playing it is the same as that for D#5 and C7. It is not a member of a simple register: although technically it plays at the eleventh impedance peak, few saxophonists bugling this note (except those discerning ones who have seen this site) would be aware of that.

The weakness of this peak (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

Sound

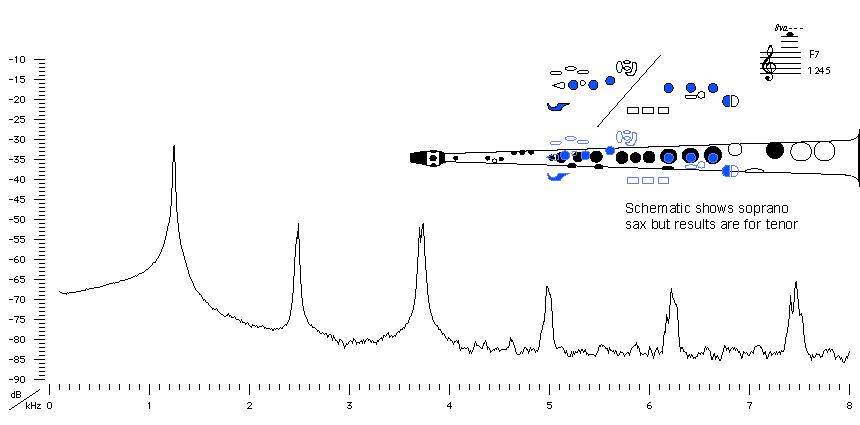

Sound spectrum of a Bb tenor saxophone played using fingering for F7.
For more explanation, see Introduction to saxophone acoustics.

Sound Clip

You can hear F7 played.

Alternative Fingering

tenor saxophone

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.


Impedance spectrum of a Bb tenor saxophone measured using alternative fingering for F7.

This is the eleventh note in the altissimo or very high range. It is not a member of a simple register: it plays at the eleventh impedance peak, a cross fingered note whose operating peak falls above the cut-off frequency and so cannot readily be described in terms of an effective length.

The weakness of this peak (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

Sound

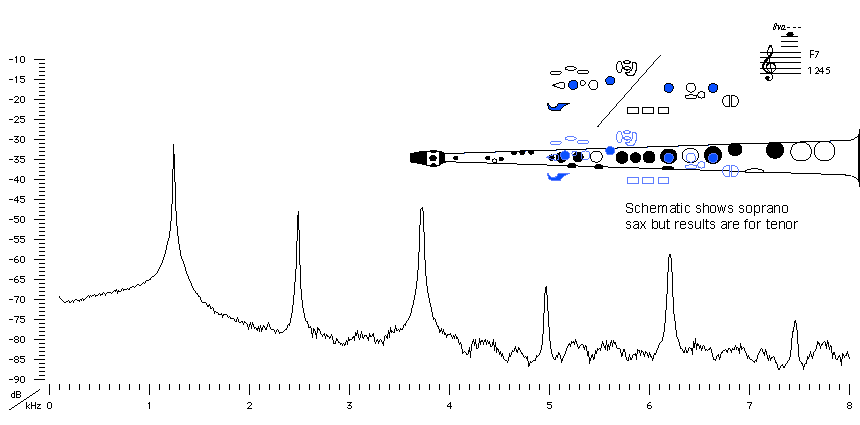

Sound spectrum of a Bb tenor saxophone played using alternative fingering for F7.
For more explanation, see Introduction to saxophone acoustics. This sound spectrum includes transient excitation from the beginning of the note, and so has traces of a subharmonic being excited above 4 kHz.

Sound Clip

You can hear F7 played with alternative fingering.
