|Acoustics of baroque, classical and modern flutes
Acoustic and Fingering Schematic

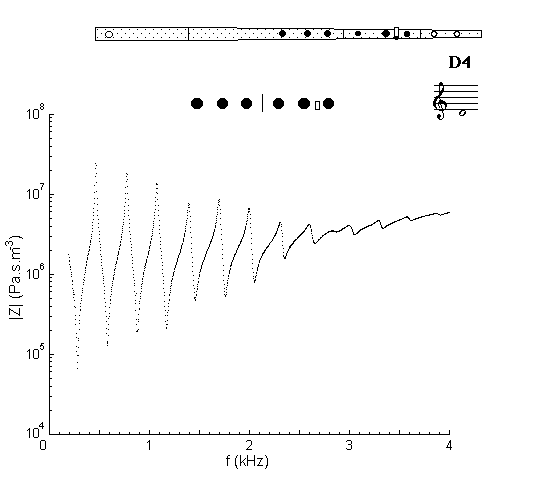

With two holes open, the filtering effect of the downstream holes is clear at frequencies above about 1.5 kHz. Compare this spectrum with more regular impedance spectrum for D4 on the classical instrument with a D foot. The regular, harmonically spaced minima in the latter spectrum allow greater power in the higher harmonics, and thus a brighter tone for this note.

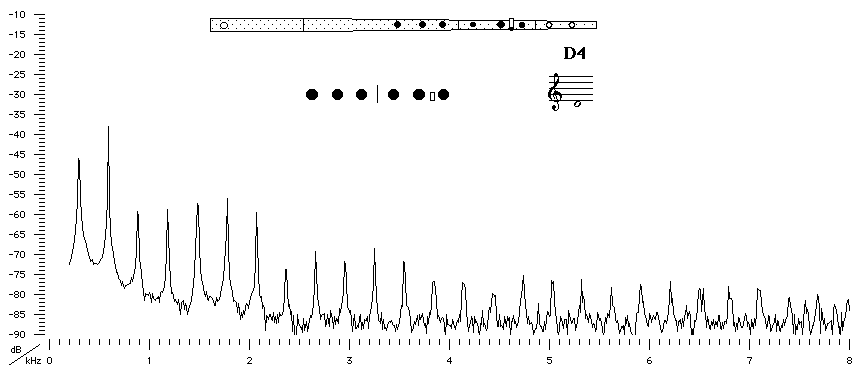

Sound spectrum of a classical flute with a C foot played using fingering for D4.
You can hear D4 played by Geoffrey Collins.
|Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
|To compare flutes, it is easiest to open a separate browser window for each instrument.
