Acoustics of baroque, classical and modern flutes

baroque flute

E4

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3
D4 D#4 and Eb4 E4 F4 F#4 G4 G#4 and Ab4 A4 A#4 and Bb4 B4
C5 C#5 D5 D#5 and Eb5 E5 F5 F#5 G5 G#5 and Ab5 A5 A#5 and Bb5 B5
C6 C#6 D6 D#6 and Eb6 E6 F6 F#6 G6 no G#6 on baroque flute A6

Impedance

Acoustic and Fingering Schematic
a covered tone hole or key pressed
an uncovered tone hole or key not pressed
a partly covered hole

Details in fingering legend.

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

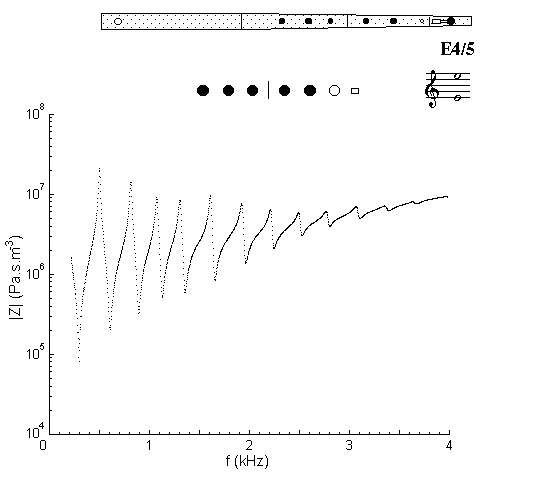

Impedance spectrum of a baroque flute measured at the embouchure hole using fingering for E4 and E5. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

From E4 to B4 and E5 to B5, the simple fingerings (i.e. those that do not involve cross-fingering) serve for two notes. The flutist uses the same fingering for E4 and E5, but changes the speed, length and shape of the jet.

The hole of the RH 3rd finger is placed higher than acoustic arguments would recommend, in order to bring it within easy reach of the finger. Consequently, it must be smaller than expected (at 4.3 mm diameter, the smallest on the instrument).

We could call this an implicit cross-fingering: even though no finger hole is closed below the first open one (RH 3rd), the key is in the closed position. The extent of the standing wave beyond an open hole increases with the frequency, especially for small holes. This has the effect of making the effective length of the flute increase with frequency. As a result, the minima at higher frequencies are flatter than strict harmonic ratios. For more on cross fingerings, download a brief scientific report.

Note that, even with just one hole open, some of the regularity of the response curve for D4 has disappeared. The fifth and some higher minima are shallower and not harmonic. Thus the higher harmonics are weaker than for D4, and so the tone is noticeably darker.

Sound

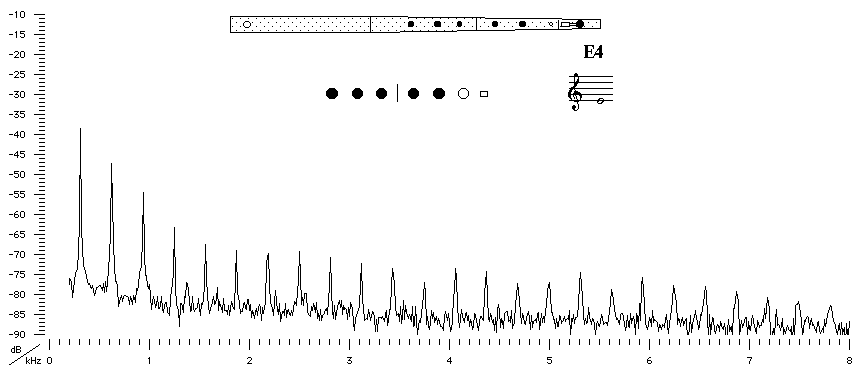

Sound spectrum of a baroque flute played using fingering for E4.

Sound Clip

You can hear E4 played by Matthew Ridley.


Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
