Acoustics of baroque, classical and modern flutes

modern flute
C foot

multiphonic
C5 & D#6

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7 D7 D#7 E7 F7 F#7 multiphonics

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

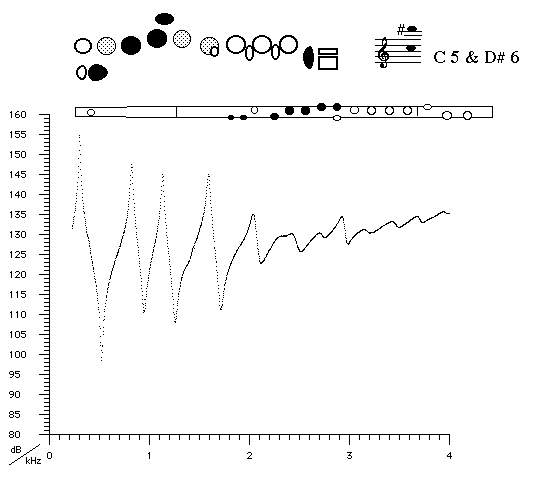

Impedance spectrum of a modern flute with a C foot measured at the embouchure hole using fingering for the multiphonic C5 & D#6. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

This is the standard fingering for D6 and may be compared with that for G6, with the C# hole acting as a register hole. It may also be regarded as a C# with enough cross fingering to flatten it by a semitone. Until the 1950s, playing both notes together would have been regarded as a mistake rather than a multiphonic.

A two-note multiphonic requires the superposition of two standing waves (whose frequencies, which are not in harmonic ratios, determine the pitches). Usually, this is achieved by opening one tone hole in a series of closed tone holes. The wave travelling downstream from the reed is partially reflected at the open tone hole, which makes one standing wave. The rest of the energy in the incident wave continues down the bore, until it reaches the first in a series of open tone holes. Here it is reflected to make the second standing wave.

For this situation to apply, the frequencies of the notes have to be such that the effect of the inertia of the air in the open tone hole is large enough to allow some transmission past the hole, but small enough to produce some reflection. For low-pitched notes, the tone hole is usually small.


The Virtual Boehm Flute may suggest other fingerings for this multiphonic.
Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
