Acoustics of baroque, classical and modern flutes

modern flute
C foot

F#6

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7 D7 D#7 E7 F7 F#7 multiphonics

Impedance

Fingering
a key depressed
a key not depressed
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

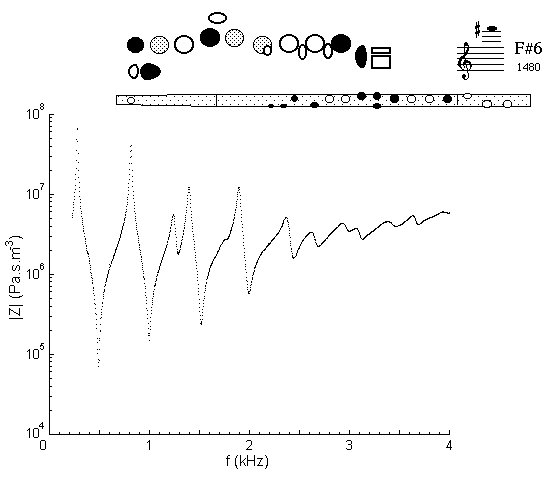

Impedance spectrum of a modern flute with a C foot measured at the embouchure hole using fingering for F#6. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

This fingering is comparable to that for F#4 except for the use of the holes operated by the LH middle finger key as a (double) register hole. This creates a pressure node (or flow antinode) about three quarters of the way along the pipe. Comparing this with the F#4 impedance spectrum, we see that the fourth minimum (the one that plays F#6) is deeper. The third is extremely shallow and unplayable. The first minimum plays ~B4 and the second ~Bhalf flat5 but, because it is a cross fingering for these notes, their timbres are darker. Combinations of these three notes may be played simultaneously as multiphonics. Often unintentionally: F#6 is notorious for being hard to play softly with confidence. Its minimum is not as stable as that for, say F6, but worse, the minimum at ~B5 is well supported by another at ~B6.


The Virtual Boehm Flute may suggest other fingerings for this note.
Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
