Acoustics of baroque, classical and modern flutes

classical flute
flared foot

E6

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3
D4 E4 F4 F#4 G4 A4 B4
C5 C#5 D5 E5 F5 F#5 G5 A5 B5
C6 C#6 D6 E6 F#6 G6 A6

Impedance

Acoustic and Fingering Schematic
a covered tone hole or key pressed
an uncovered tone hole or key not pressed
a partly covered hole

Details in fingering legend.

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

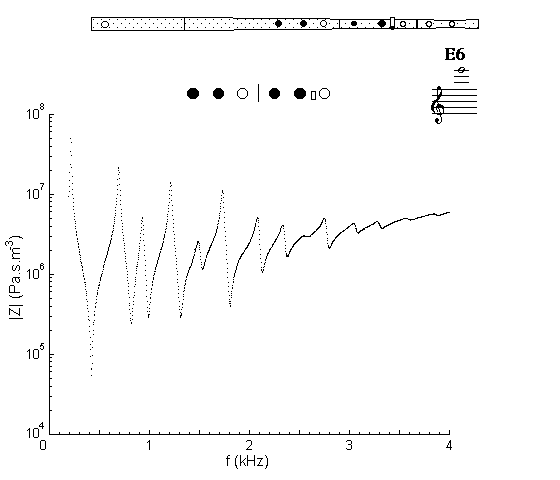

Impedance spectrum of a classical flute with a flared foot measured at the embouchure hole using fingering for E6. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

This fingering may be considered as E4 with a register hole. The fourth minimum produces E6. The fingering is out of tune - classical flutes intended to play in the third octave usually had extra keys, which allowed the designer more parameters to vary to maintain intonation over a wider range. (The dimensions of this instrument are based on those of a large-hole Rudall and Rose flute: R & R #655 from the Bate Collection in Oxford.)

Sound


Sound spectrum of a classical flute with a flared foot played using fingering for E6.

Sound Clip

You can hear E6 played by Geoffrey Collins.


Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
