UCLES Slit Area & Iodine Cell
The Anglo-Australian Planet Search (AAPS) is a long-term program being carried out on the 3.9m Anglo-Australian Telescope (AAT) to search for giant planets around more than 240 nearby Solar-type stars with V<8. We use the "Doppler wobble" technique to search for these otherwise invisible extra-solar planets, and achieve the highest long-term precision demonstrated by any Southern Hemisphere planet search.
UCLES Slit Area - Automating the I2 cell
The I2 cell currently sits between the SF1 (slit filter wheel 1) and the entrance to the UCLES spectrograph room. In order to mount it in this location, SF2 (slit filter wheel 2) is removed.
However there is an additional wheel in the optical train - the focal modifier wheel. This holds small optical elements in barrels which modify the f-ratio of the beam after the slit. This wheel currently holds two sets of optics. It has about 4 blank positions in it.
Modification has allowed a new barrel to hold and insulate the cell, a mechanism to halt complete rotation of the wheel, and software effort to integrate with the UCLES ODC.
The insertion of the cell is now under control from the UCLES ODC interface. No more running up and down the stairs to insert and remove the cell when doing templates. Hooray!
It has now been used in this location for 4 months (as at April 2007) and we have had no problems with using it there.

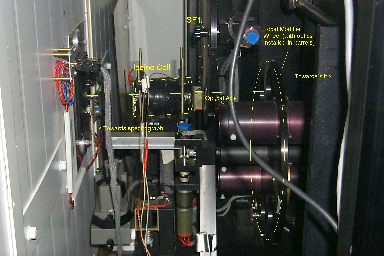

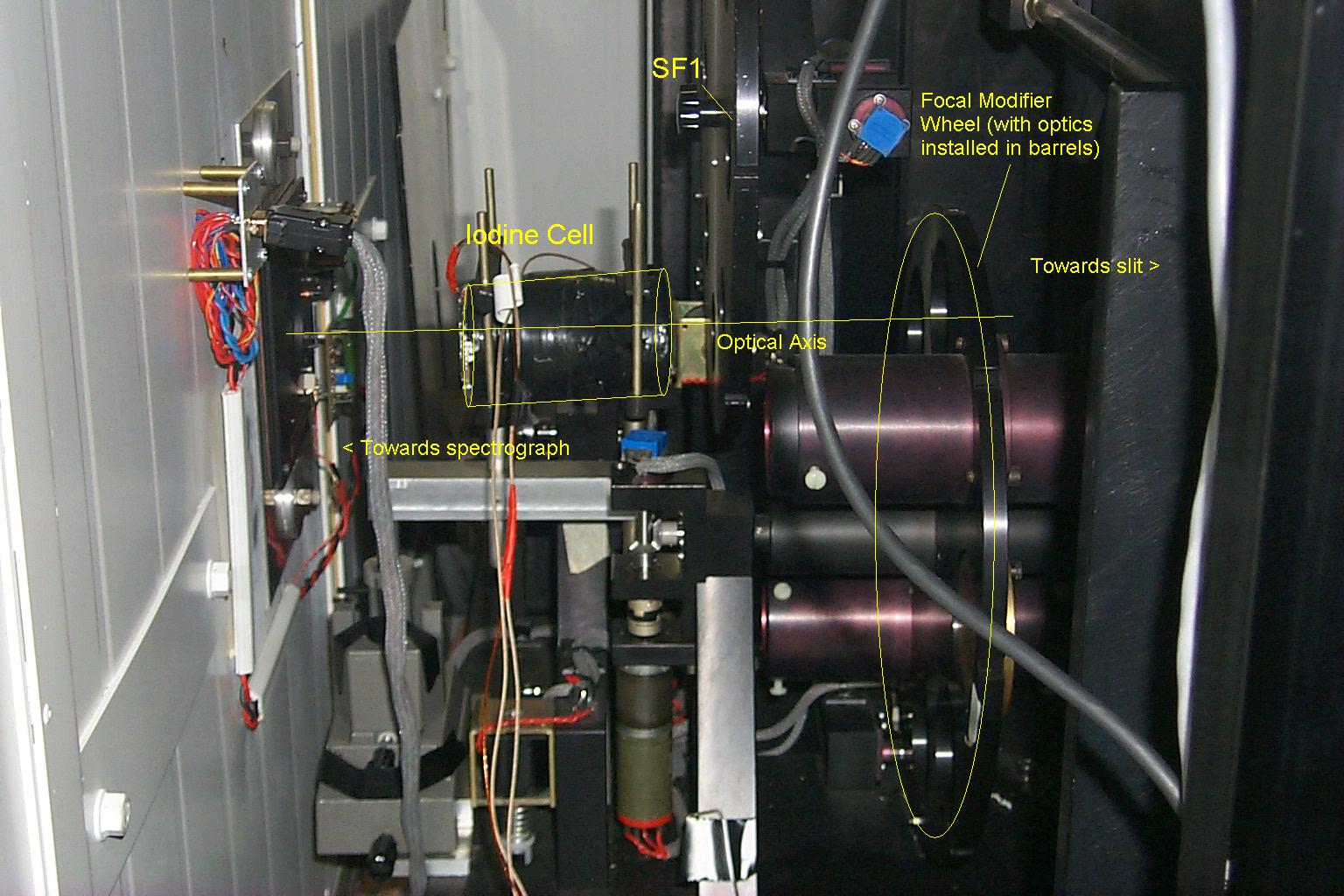

The image to the left is a compressed view of the area behind the slit, but before light enters the UCLES spectrograph room. Click on the image for a larger view.

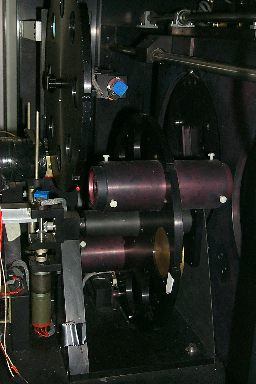

The view below is an expanded view of the focal modifier wheel itself.
