Acoustics of baroque, classical and modern flutes

baroque flute

A#5 & Bb5

Music Acoustics UNSW

modern B modern C classical C classical D classical flared baroque B3
D4 D#4 and Eb4 E4 F4 F#4 G4 G#4 and Ab4 A4 A#4 and Bb4 B4
C5 C#5 D5 D#5 and Eb5 E5 F5 F#5 G5 G#5 and Ab5 A5 A#5 and Bb5 B5
C6 C#6 D6 D#6 and Eb6 E6 F6 F#6 G6 no G#6 on baroque flute A6

A#5 Fingering

Impedance

Acoustic and Fingering Schematic
a covered tone hole or key pressed
an uncovered tone hole or key not pressed
a partly covered hole

Details in fingering legend.

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

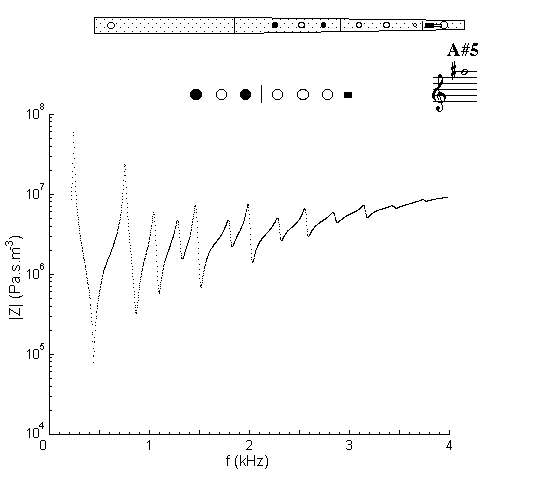

Impedance spectrum of a baroque flute measured at the embouchure hole using fingering for A#5. Z is plotted in dB, i.e. 20 log(Z/Pa.s.m-3).

This is a cross fingering: a hole is closed below one open. Both first and second minima are flattened below their values in the B4/5 fingering: the second (used to play A#5) by a semitone, and the first less so. For more detail on cross fingering see that section in the introduction to flute acoustics, or download a brief scientific report on cross fingerings.

Sound

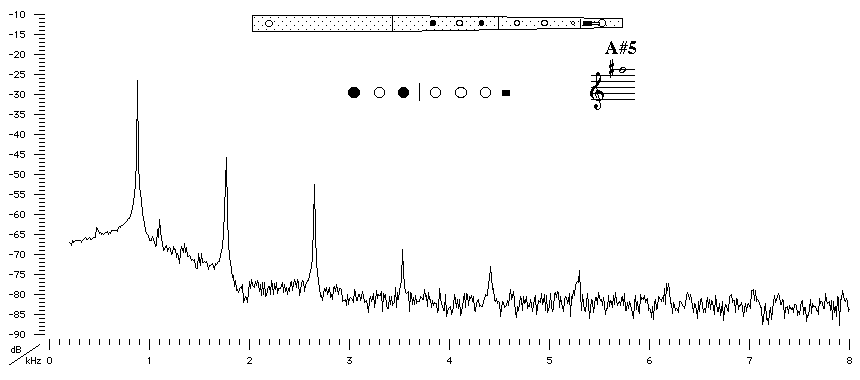

Sound spectrum of a baroque flute played using fingering for A#5.

Sound Clip

You can hear A#5 played by Matthew Ridley.

Bb5 Fingering

baroque flute

Impedance


Acoustic and Fingering Schematic
a covered tone hole or key pressed
an uncovered tone hole or key not pressed
a partly covered hole

Details in fingering legend.

Non-specialist introduction to acoustic impedance
Non-specialist introduction to flute acoustics

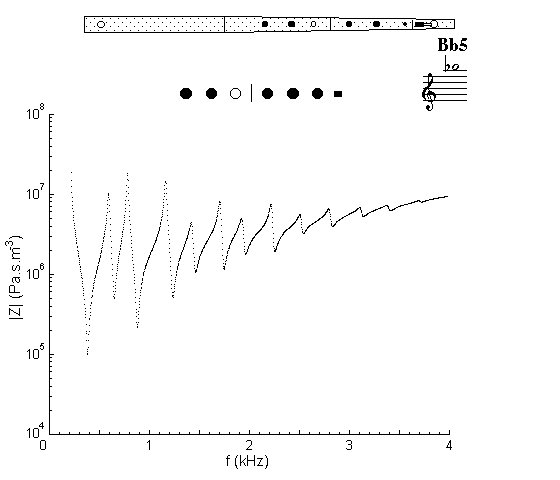

Impedance spectrum of a baroque flute measured at the embouchure hole using fingering for Bb5.

This fingering can, in this context, be considered as like that for Eb4 but with a register hole approximately two thirds of the way along the effective length, thereby facilitating the third harmonic of Eb4, while rendering Eb4 impossible. See register holes in our introduction to flute acoustics. (This fingering also plays Ab4, in which context it is considered as a cross fingering.)

Sound

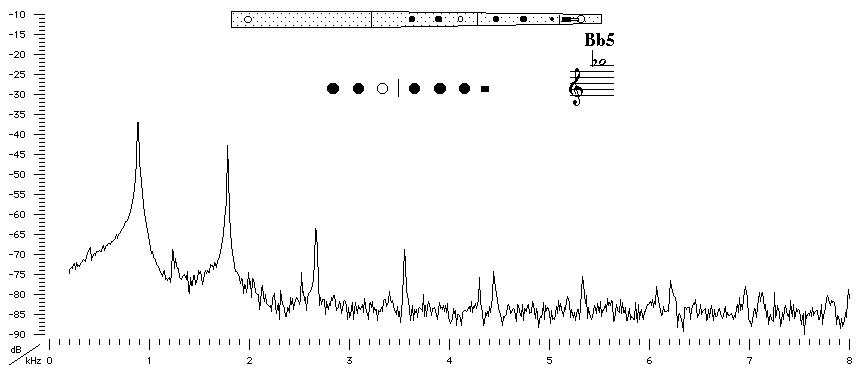

Sound spectrum of a baroque flute played using fingering for Bb5.

Sound Clip

You can hear Bb5 played by Matthew Ridley.


Fingering legend
How were these results obtained?
Acoustic measurements are available for these flutes -
modern B, modern C, classical C, classical D, classical flared, baroque
Sound clips are available for modern B, classical flared and baroque
To compare flutes, it is easiest to open a separate browser window for each instrument.

Copyright © Academic Press. JSV+ Joe Wolfe, John Smith, John Tann and Neville H. Fletcher, Acoustics of baroque, classical and modern flutes
Revised to include the baroque flute 2001.
